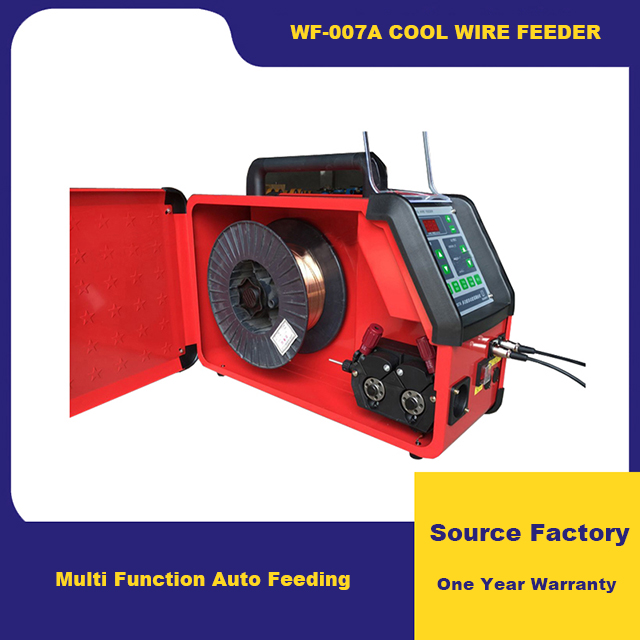

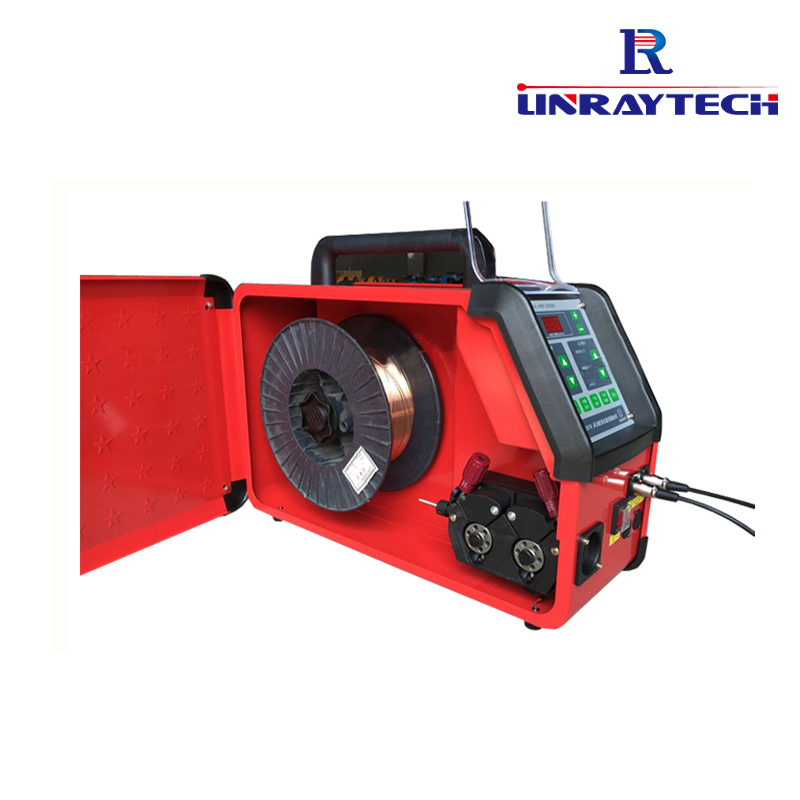

WF-007A cold wire feeding machine is used for welding process such as arc welding, laser welding, plasma welding, and welding.
| Quantity: | |
|---|---|
WF-007A
LINRAYTECH
LR-TW003
Products Description
WF-007A cold wire feeding machine is used for welding process such as arc welding, laser welding, plasma welding, and welding.
Multi Functions:
1. Feed wire for handmade arc welding.
2. Feed for automatic arc welding and welding robots.
3. Automatically feeding in the laser welding process.
4. Use for plasma welding.
Machine features:
1. The feeding speed can be adjusted continuously;
2. Welding wire pumping function;
3. Delayed wire delivery function;
4. Welding machine delay function;
5. Pulous wire delivery function;
6. Continuous wire delivery function;
7. Double -drive circular wire delivery system, which is suitable for a variety of diameter welding wires;
8. Applicable to various arc welding machines;
9. Improve work efficiency, reduce labor intensity, and save labor and equipment costs.
10. Welding effect is stable and excellent, and product quality is improved;
11. Various functional parameters are independent and continuously adjusted.
12. Parameter adjustment accuracy is high.
13. Standardized products and parts can be selected according to the actual application.
14. It can be widely used in aluminum alloy, stainless steel, low -carbon steel and non -ferrous metals.
15. A variety of welding processes such as arc welding, ion welding, laser welding and other methods.
16. It can be applied to the welding process of artificial, automation and robots.
Parameters:
| Technical Parameters: | |
| Voltage: | AC220V 50Hz/60Hz |
| Number of phase: | single phase |
| Frequency: | 50/60Hz |
| Electric: | DC permanent magnet |
| Speed: | 1200rpm |
| Welding wire plate size: | 305mm |
| Welding wire size: | 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm |
| Scene speed range: | 0-600 cm/min |
| Pulous wire delivery time: | 0-10 seconds |
| Pulous pause time: | 0-10 seconds |
| Delay starting: | 0-10 seconds |
| Return to wire time: | 0-20 seconds |
| Delay at the power off the power time: | 0-10 seconds |
| Steps control: | 2/4 steps |
| Click to move the wire speed: | 200 cm/min |
| Click to move back to the wire speed: | 100 cm/min |
| Dimension: | 420mm × width 210 mm × length 570 mm |
| Weight: | 16 kgz |
| Speed accuracy: | 1% |

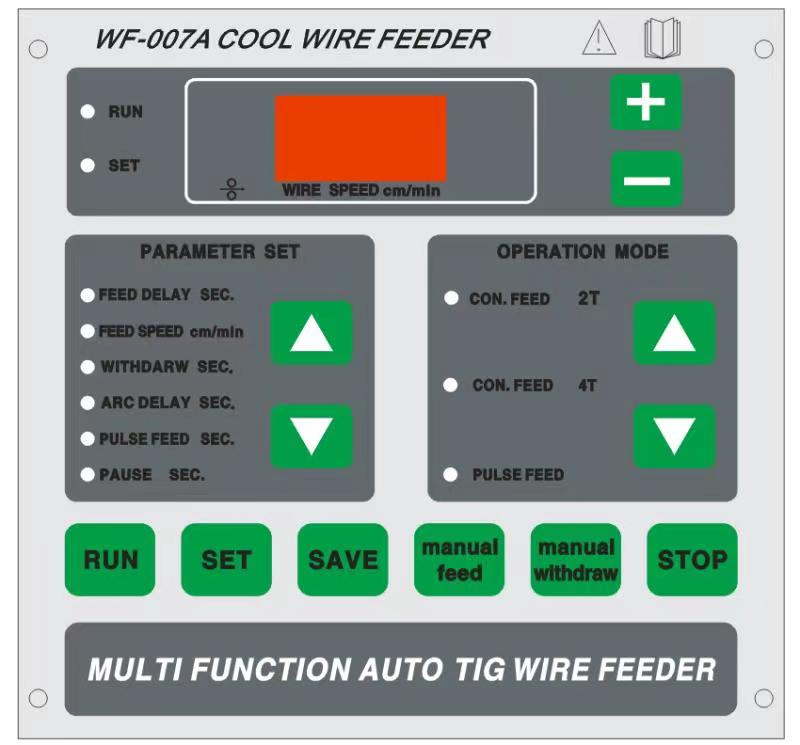

Model and function setting of cold wire feeder:
Function | Model: | |||
WF-007A | WF-007B | C mould | D mould | |
Continuous Feed | * | Δ | ||
Feed delay | * | Δ | ||
Feed pumpback | * | Δ | ||
Welding machine delay | * | Δ | ||
2-step control for 2T | * | Δ | ||
4-step control for 4T | * | Δ | ||
Manual Feed | * | Δ | ||
Manual pumpback | * | Δ | ||
Pulse Feed | * | Δ | ||
External 0-10V input | Δ | |||
External contact Feed / pumpback | Δ | |||
* for the Standard Function
Δ is the function of customized
WF Model and specification table of cold wire feeding machine
Model | Maximum send wire speed |
WF-007A | 6m/min |
WF-007B | 6m/min |
Applications
