Features
The UV marking machine works on the principle of relying on laser energy to interrupt the bonding between atoms and molecules, allowing them to become small molecules that vaporise or evaporate away. This process has a small focused spot and has a very small impact on the heat affected zone of the process, and is smoke free and pollution free, which is why it can be used for ultra fine marking and special material marking.
Application of UV laser marking machine

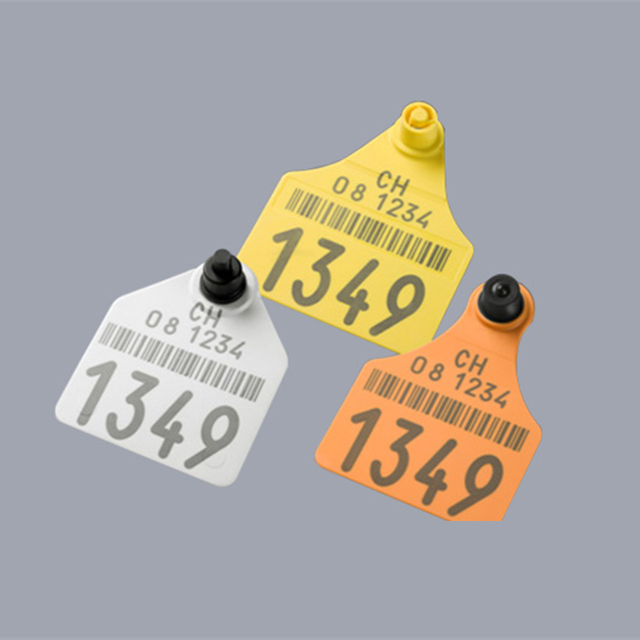

UV laser marking machines have been widely used in the fine processing industry: pharmaceuticals, food, cosmetics and other polymer materials packaging surface marking.

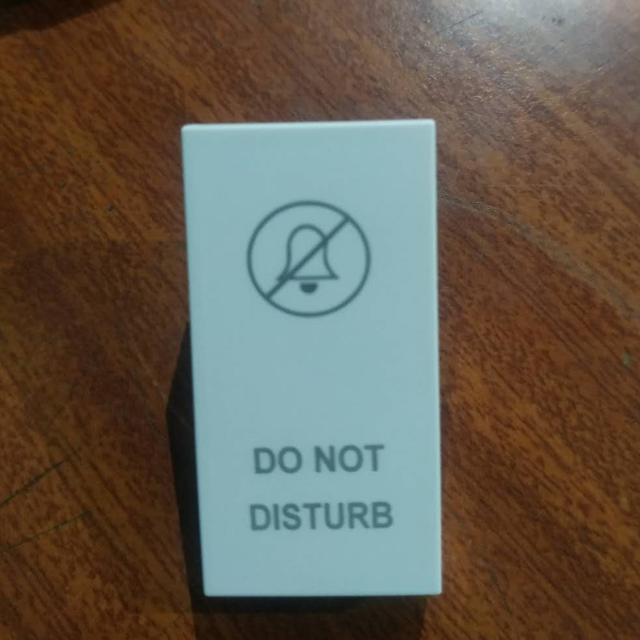

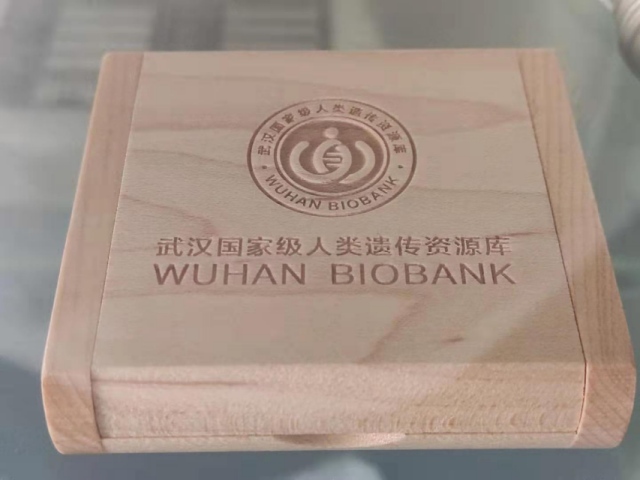

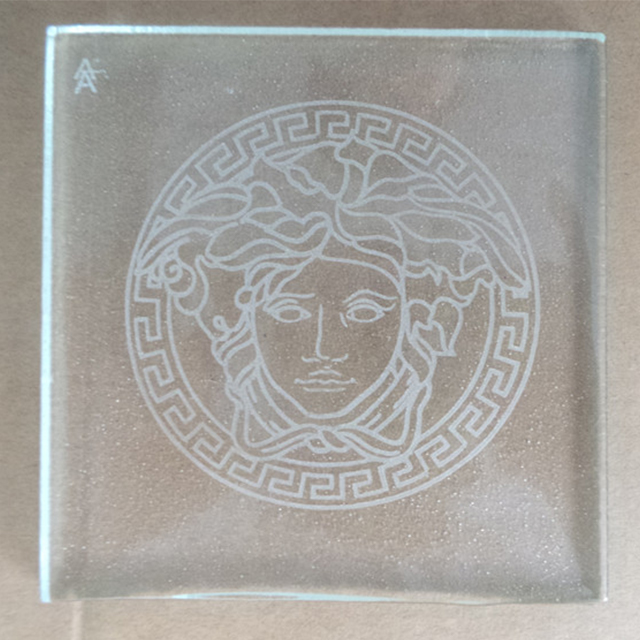

The UV laser marking machine supports almost any material marking, such as metal, wood, glass and plastic.
The marking effect much better than fiber laser marking machine on plastic and CO2 laser marking machine on wood.
Specification of UV laser marking machine
Model | LR-MU3 | LR-MU5 | LR-MU10 | LR-MU15 |
laser power | 3W | 5W | 10W | 15W |
Laser wavelength | 355nm | |||
Repetition frequency | 10-200KHz | |||
Min.marking line width | 10µm-15µm | |||
Marking speed | 250 characters/sec | |||
Repetition accuracy | ±0.003mm | |||
Marking scope | 100*100mm-180*180mm | |||
Cooling mode | Water cooling | |||
Power consumed | ≤1.5KW | |||
Electrical demand | Ac220V±10%, 50 or 60HZ | |||
