Rotating Fixture For Laser Welding And Marking Machine

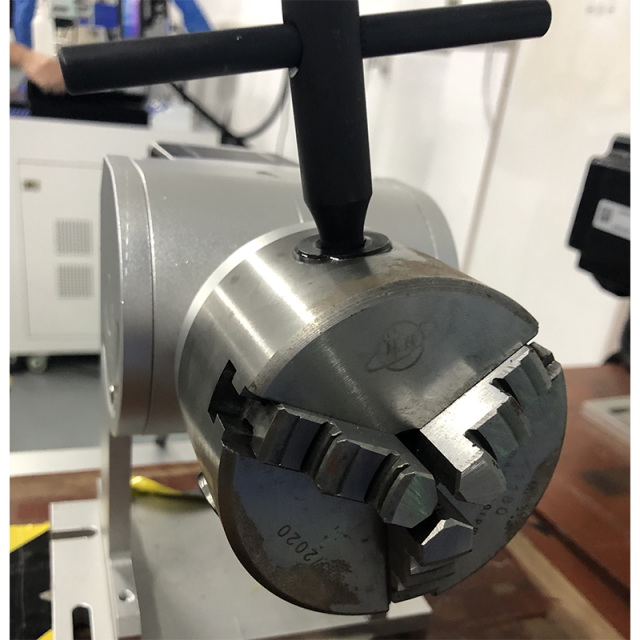

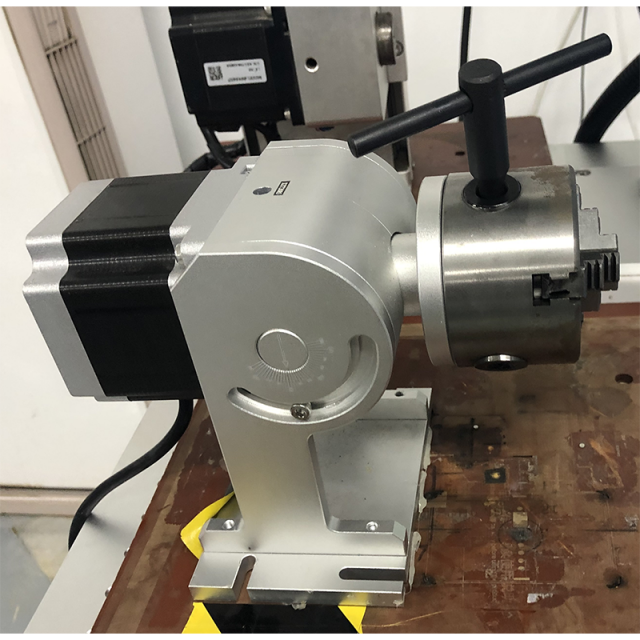

Rotating fixture is an auxiliary equipment used by marking machines or other machine tools to complete parts processing. The rotary fixture is composed of a body, a sliding seat, and a chuck. The sliding seat can perform linear feeding motion on the body, and the chuck can perform 360-degree rotary motion on the sliding seat.

S3 chuck size: 80MM

Rotary clamp weight: 0-3KG

Applicable workpiece

Wild card: 22-63mm outer diameter

Inner card: 2-70mm inner diameter

Rotation speed: automatic speed regulation according to the diameter of the workpiece

Others: 360 degree rotation angle

Application range: suitable for rotary marking of cylindrical products, flanges, dials, cups, LED lamps, etc.
