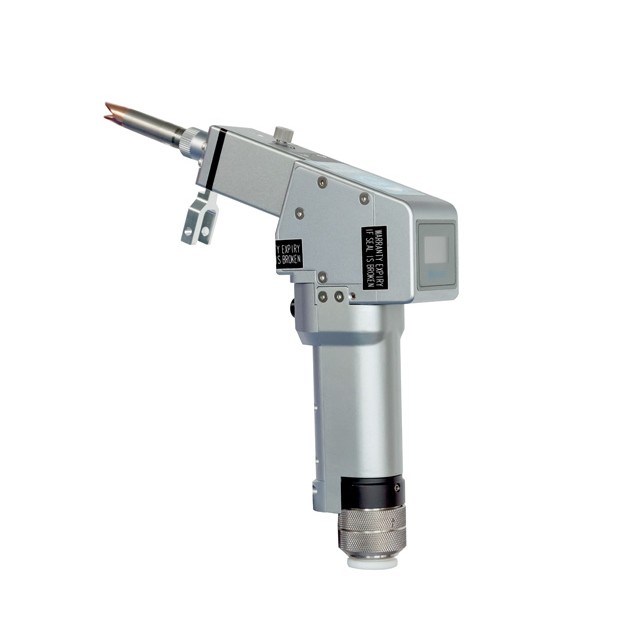

Qilin BWT20 Biaxial Swing Hand Held Laser Welding Gun for Handheld Laser Welding Machine

Handheld welding system suit for 1000, 1500, 2000 watts laser welding machine.
Dual swing welding gun support 6 wave mode
Availability:
Quantity:

BWT20 Qilin handheld laser welding system with dual swing welding gun

Product introduction

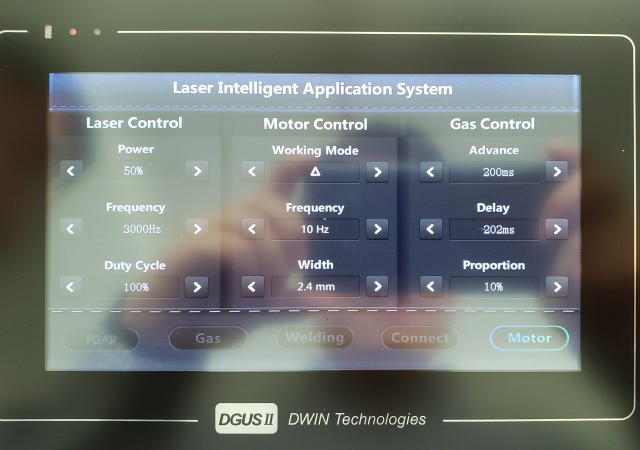

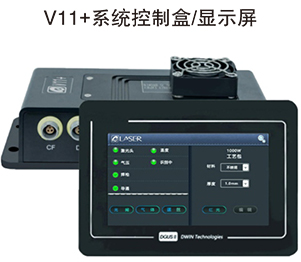

V11 welding system and touch panel

Light and flexible, and the grip design conforms to ergonomics.

The protective lens is easy to replace.

High quality optical lens can carry 2000W power.

Scientific cooling system design can effectively control the working temperature of the product.

The process package has storage and calling functions.

Good sealing can significantly improve the service life of the product.

Double protective mirror, pull-out aggregation mirror.

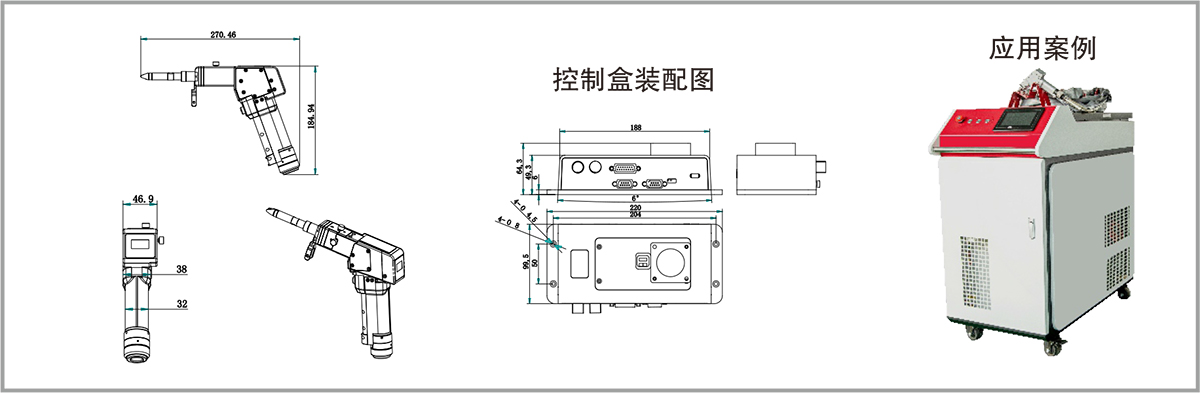

laser welding gun


Technical parameter

接口类型(Interface):QBH/RD

通光孔径  (Optical Aperture):9mm

承载功率(Max Power):2000W

摆动幅度(Wave Range):0--5mm

准直焦距(Collimating Length):50mm

摆动频率 (Wave Frequency):0-30HZ 可调

聚焦焦距(Focusing Length):150mm

整体重量(Weight):0.85KG

摆动模式(Wave Mode):wave model
