Brief Introduction
50W laser cleaning system size 318*285*127mm, comparable with A4 paper size, total weight 8kg.
The size of 100W laser cleaning system is 360*380*150mm, which is comparable to A3 paper size, and the total weight of the machine is 10kg.

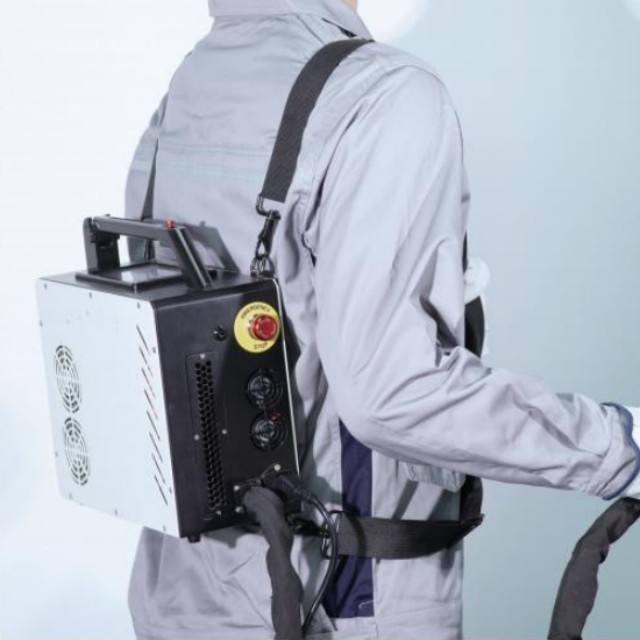

Whether handheld, shoulder, or fixed in the workstation are small, we do the most extreme miniaturization under the premise of ensuring full functionality
Applicable materials and industries of Portable Laser Cleaning Machine
This portable laser cleaning can be very convenient to clean graffiti, welding channel and oxide.
Pre-treatment work before welding and Post-weld heat treatment.
Specification
Model | LR-CL50 | LR-CL100 |
Laser power | 50 watts | 100 watts |
Output mode of operation | Pulse | Pulse |
Output Armored Length | 5m | 5m |
Cooling mode | Air cooling | Air cooling |
Supply voltage | 220V | 220 V |
Maximum power consumption | 350W | 550W |
Max pulse energy | 1.1mj | 1.5mj |
Operating temperature range | 0～40℃ | |
Storage temperature range | -10～60℃ | |
Laser head | 0.62kg | 0.62kg |

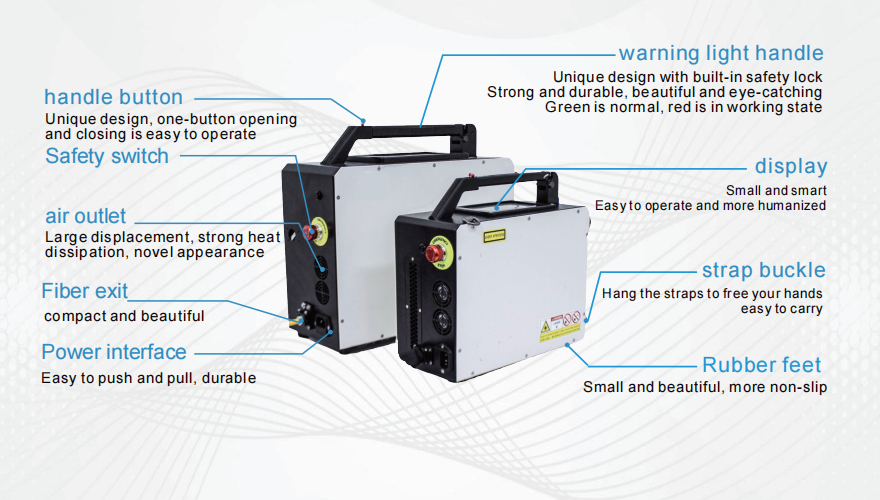

Structure Introduction of Portable Laser Cleaning Machine

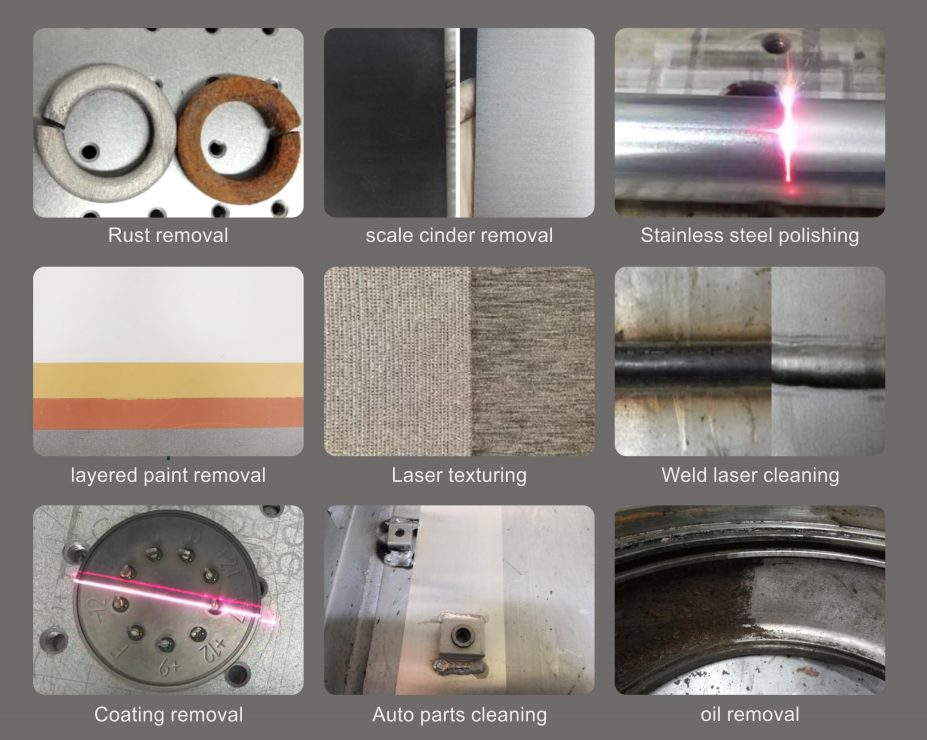

Application of Portable Laser Cleaning Machine
Brief Introduction
50W laser cleaning system size 318*285*127mm, comparable with A4 paper size, total weight 8kg.
The size of 100W laser cleaning system is 360*380*150mm, which is comparable to A3 paper size, and the total weight of the machine is 10kg.
Whether handheld, shoulder, or fixed in the workstation are small, we do the most extreme miniaturization under the premise of ensuring full functionality
Applicable materials and industries of Portable Laser Cleaning Machine
This portable laser cleaning can be very convenient to clean graffiti, welding channel and oxide.
Pre-treatment work before welding and Post-weld heat treatment.
Specification
Model | LR-CL50 | LR-CL100 |
Laser power | 50 watts | 100 watts |
Output mode of operation | Pulse | Pulse |
Output Armored Length | 5m | 5m |
Cooling mode | Air cooling | Air cooling |
Supply voltage | 220V | 220 V |
Maximum power consumption | 350W | 550W |
Max pulse energy | 1.1mj | 1.5mj |
Operating temperature range | 0～40℃ | |
Storage temperature range | -10～60℃ | |
Laser head | 0.62kg | 0.62kg |
Structure Introduction of Portable Laser Cleaning Machine
Application of Portable Laser Cleaning Machine
