3 In 1 Handheld Laser Welding Cutting Cleaning Machine For Matel

1. Stainless steel, aluminum, galvanized sheet welding.
2. Simply cutting and cleaning work.

Availability:

Quantity:



Inquire Add to Basket

Product Description

3 In 1 Handheld Laser Welding Cutting Cleaning Machine For Matel

Product Introduction

Handheld laser welding cutting cleaning machine is a new type of convenient laser machine that can be operated by the general public.

Handheld laser welding machine combines the lightness and ease operation of traditional argon arc welding with the environmental protection, high efficiency and energy saving of laser welding. At the same time, with the wobble welding technology and automatic wire feeding system, it perfectly solves the problem of thin plates, and plates with large gaps are difficult to be efficient and high-quality Difficulties in welding.

Compared with traditional argon arc welding, the hand-held laser welding machine is more environmentally friendly, efficient and flexible. It not only greatly improves the efficiency of traditional welding, but most importantly, it greatly improves or even solves the occupational health problems of traditional argon arc welding operators.

Features

1. High efficiency ,energy saving ,environment friendly and more safety operation ;

2. Using fiber laser souce which guarantee high reliability and newest technology ;

3. At least 10 meters length of fiber cable which more flexible for working;

4. Smooth weld bead with minimum oxidation ,work piece no deformation ;

5. Much faster welding speed than traditional welding with minimum polish ;

6. Adjustable laser beam width which meet various gaps parts welding requirements ;

7. Easy to operate and no need high experienced operators like arc welding;

8. No UV light ,no ozone when operating ,keep operators health .

Applications

Stainless steel kitchen and bathroom supplies, stainless steel door and window guardrails, staircase elevators, stainless steel furniture, hardware accessories, power distribution cabinets, ducts, containers, etc.

Specifications

Model	LR-WF1000/1500/2000-H
Laser Power	1000W	1500W	2000W
Laser wavelength	1064nm
Penetration	<4mm (depends on laser power and material)
Working Temperature	<40℃
Working humidity	<70%
Length of fiber cable	10 meters(standard)
Power Supply	1PH / 220V±10% / 50-60Hz
Cooling Way	water cooling
Laser Type	Fiber Continuous
Cleaning model	20mm scan width(40mm maximum after changing lens)

Comparison with traditional welding(For reference):

Item	Traditional welding	Handheld laser welding
Heat effect	Very high	Low
Welding deformation	Big	Small
Welding strength	Good	Excellent
Post-processing	Polish	No or Rarely polished
Welding speed	Common	fast
Applicable materials	Stainless steel,carbon steel,AL	Stainless steel,carbon steel,AL
Consumables	Many	Little
Operation difficulty	Difficult	Simple
Operator safety	dangerous	Safe
Environmental	Polluted	Environmental
Welding fault tolerance	Good	Good
Wobble welding	NO	Yes
Adjusted beam width	NO	Yes
Welding quality	Bad	Excellent

Handheld laser welding cutting cleaning machine penetration table(For reference，”V” mean support)

Material	Protective gas	Thickness	1000w	1500W	2000W
Material	Protective gas	（mm）	1000w	1500W	2000W
Aluminum	N2	1	V	V	V
		1.2	V	V	V
		1.5		V	V
		2			V
		2.5			V
stainless steel	Ar or N2	0.5	V	V	V
		0.8	V	V	V
		1	V	V	V
		1.2	V	V	V
		1.5		V	V
		2		V	V
		2.5			V
		3
Carbon steel	CO2 or Ar	0.5	V	V	V
		0.8	V	V	V
		1	V	V
		1.2	V	V	V
		1.5		V	V
		2			V
		2.5			V
		3
Galvanized sheet	Ar	0.5	V	V	V
		0.8	V	V	V
		1	V	V	V
		1.2	V	V	V
		1.5		V	V
		2			V
		2.5			V

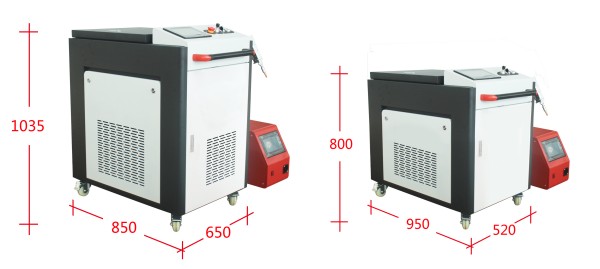

Machine size

Handheld Laser Welding Machine Handheld Laser Cutting Machine Handheld Laser Cleaning Machine
