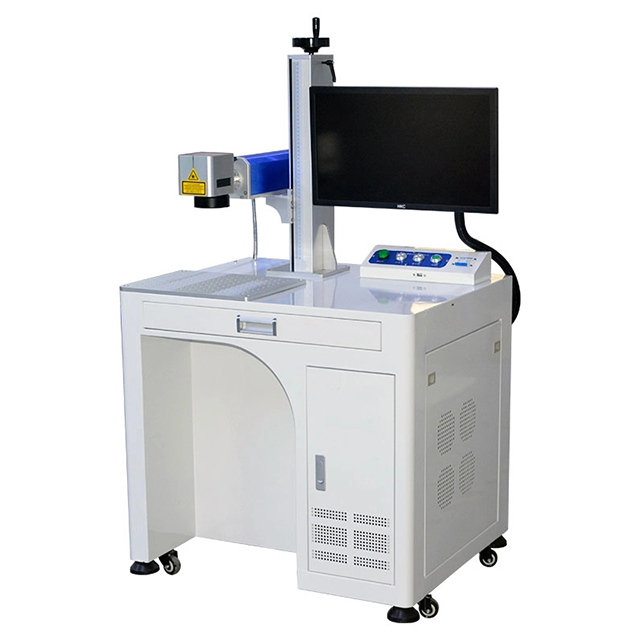

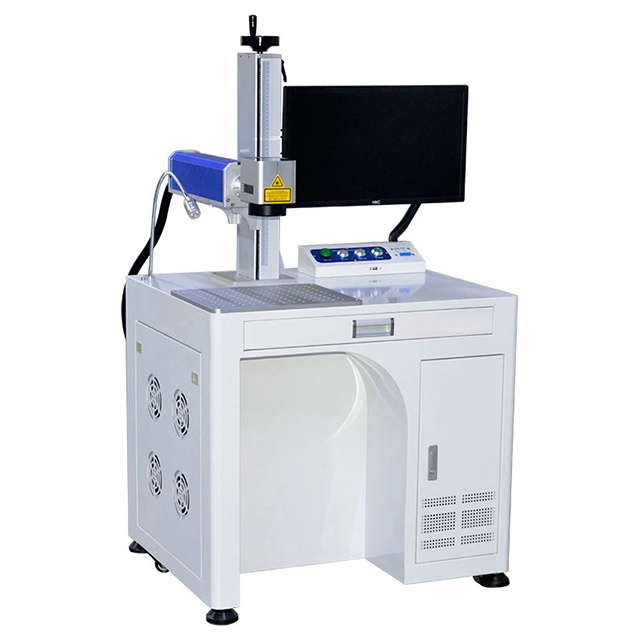

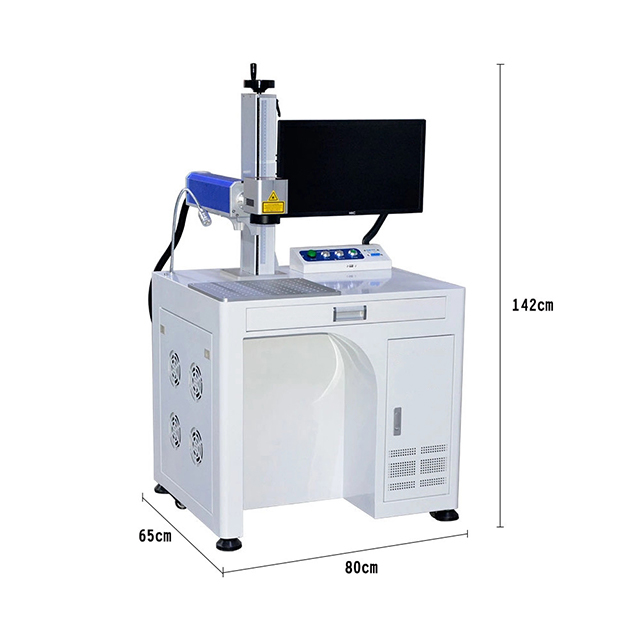

20W 30W 50W Fiber Laser Marking Machine for Metal And Plastic Marking
Features
1. High efficiency in electrical / optical conversion, wind cooling ;
2. Small in size, with high beam output quality, high reliability;
3.Fast marking speed which at least 3-12 times faster than traditional machine ;
4.No consumable ,long term service life of the laser source,energy saving;
5.Low power consumption and easy to operate.
Application

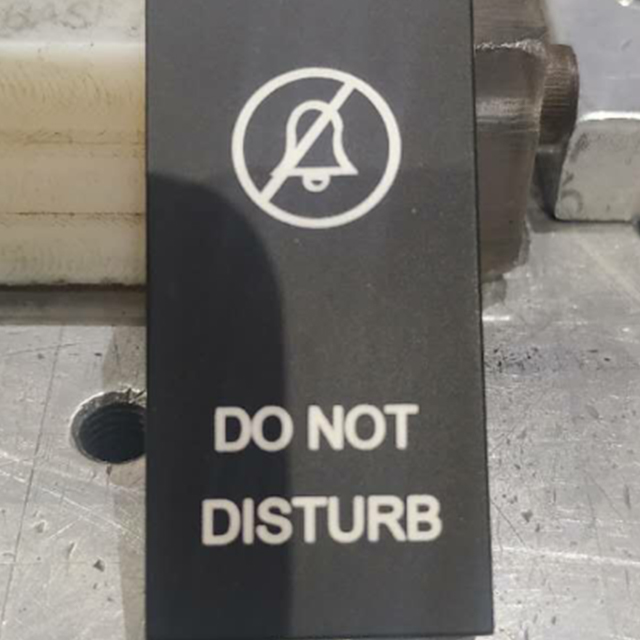

1.Electronic components, integrated circuits (IC), electrical appliances, mobile communications, plastic buttons, colored paper, food packaging, watches, molds, seals, bearings, auto parts, hardware, tool accessories, building materials, PVC pipes, etc.
2. It is also suitable for special surface treatment (phosphating, aluminum anodization, electroplating surface, surface oxygen breaking of aluminum-magnesium alloy)
Specification
Model | LR-MF20 | LR-MF30 | LR-MF50 | LR-MF100 |
Fiber laser source power | 20W | 30W | 50W | 100W |
Laser wavelength | 1064nm | |||
Power adjustment range | 10-100% | |||
Min. Spot diameter | 0.01mm | |||
Min. Character size | 0.3mm | |||
Repetition accuracy | ±0.003mm | |||
Max. Liner marking speed | 7000mm/s | |||
Standard marking area | 100*100mm, (150*150mm or 180*180mm optional) | |||
Power consumed | 500W | 800W | 1000W | |
Electrical demand | Ac220V±10%.50-60HZ |
